| 技术参数TECHNICAAL PARAMETOR TADLE | |||||
| 型号 | MODLE | ABL-60 | |||
| 注射部分 | INJECTION UNIT | ||||
| 螺杆型号 | SCREW MODER | -- | A | B | 标准 |
| 螺杆直径 | SCREW DIAMETOR | mm | 25 | 30 | 32 |
| 注射压力 | INJECTION PRESSURE | MPa | 165 | 136 | 120 |
| 理论注射容积 | THEORETICAL SHOT VOLUME | cm³ | 61 | 80 | 90 |
| 注射重量(PS) | SHOT WEIGHT(PS) | g | 48 | 64 | 72 |
| 注射速率(PS) | INECTION PATE(PS) | g/s | 40 | 56 | 68 |
| 螺杆转速 | SCREW SPEED | r/min | 6-200 | ||
| 锁模装置 | GLAMPING UNIT | ||||
| 锁模方式 | CLAMPING MODEL | -- | 内翻双曲肘 | ||
| 锁模力 | CLAMING PORCE | kn | 550 | ||
| 模板最大行程 | MAXMOULD PLATE STROKE | mm | 200 | ||
| 模具厚度 | MOULD THICKNESS | mm | 100-300 | ||
| 拉杆内间距(HxV) | SPACE BETWEEN TIE BARS | mm | 308x205 | ||

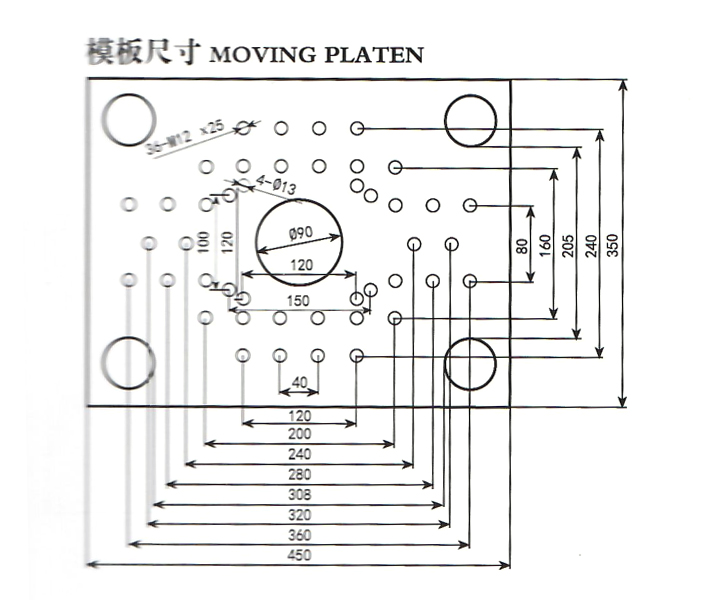

| 模板尺寸(HxV) | MOULD PLATE SIZE | mm | 450x350 | ||
| 顶出力/顶出行程 | EJECTOR FORCE/STROKE | mm | 27/60 | ||
| 其它 | OTHERS | ||||
| 油泵电机功率 | MOTOR POWER | kw | 5.5 | ||
| 加热功率 | HEATING POWER | kw | 4 | ||
| 机器重量 | MACHINE WEIGHT | T | 1.2 | ||
| 机器尺寸 | MACHINE SIZE | m | 1.43x0.82x2.7 | ||
以上参数如有变动，恕不另行通知。
lf we want to improve tech specifications parameterin normal conditions,we won 'trake any notices.
